PRODUCTS

PEDL-L114

  • BODYAL. Die-Casting, Electostatic Powder Coating
  • COVERAL. Die-Casting, Electostatic Powder Coating
  • COLORWhite, Gray, Black

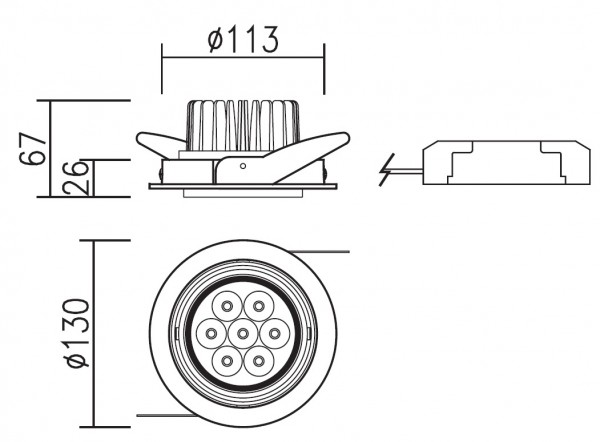

  • SIZEΦ130, LED 9W, 18W
  • CRI> 80
  • CCT
    • 5000(K)
      4000(K)
      3000(K)

Specifications

ordering numberCCT(k)power(w)Flux (lm)efficacy (lm/w)Output Voltage(V)Output Current(mA)
PEDL0950L114B1005,000992110420V DC350mA DC
PEDL0940L114B1004,00097618620V DC350mA DC
PEDL0930L114B1003,00097098020V DC350mA DC
PEDL1850L114B1005,000171,5799121V DC700mA DC
PEDL1840L114B1004,000181,2597221V DC700mA DC
PEDL1830L114B1003,000171,1006421V DC700mA DC
